Above The Air, Below The Red

Vinnie and I walk into Al’s coffee shop just as he sets out a tray of scones. “Odd-looking topping on those, Al. What is it?”

“Dark cherry and dark chocolate, Sy. Something about looking infra-red. Cathleen special-ordered them for some Astronomy event she’s hosting in the back room. Carry this tray in there for me?”

Vinne grabs the tray and a scone. “Sure, Al. … Mmm, tasty. … Hi, Cathleen. Here’s your scones. What’s the event?”

“It’s a memorial symposium for the Spitzer Space Telescope, Vinnie. Spitzer‘s been an infra-red workhorse for almost 17 years and NASA formally retired it at the end of January.”

“What’s so special about infra-red? It’s just light, right? We got the Hubble for that.”

“A perfect cue for Jim’s talk. <to crowd> Grab a scone and settle down, everyone. Welcome to our symposium, ‘IR , Spitzer And The Universe.’ Our first presentation today is entitled ‘What’s So Special About Infra-red?‘ Jim, you’re on.”

“Thanks, Cathleen. This is an introductory talk, so I’ll keep it mostly non-technical. So, question for everybody — when you see ‘IR‘, what do you think of first?”

<shouts from the crowd> “Pizza warmer!” “Invisible light!” “Night-vision goggles!”

“Pretty much what I expected. All relevant, but IR’s much more than that. To begin with, many more colors than visible light. We can distinguish colors in the rainbow because each color’s lightwave has a different frequency. Everybody OK with that?”

<general mutter of assent>

“OK. Well, the frequency at the violet end of the visible spectrum is a bit less than double the frequency at the red end. In music when you double the frequency you go up an octave. The range of colors we see from red to violet is less than an octave, about like going from A-natural to F-sharp on the piano. The infra-red spectrum covers almost nine octaves. An 88-key piano doesn’t even do eight.”

<voice from the crowd, maybe an Art major> “Wow, if we could see infra-red think of all the colors there’d be!”

“But you’d need a whole collection of specialized eyes to see them. With light, every time you go down an octave you reduce the photon’s energy capacity by half. Visible light is visible because its photons have just enough energy to cause an electronic change in our retinas’ photoreceptor molecules. Five octaves higher than that, the photons have enough energy to knock electrons right out of a molecule like DNA. An octave lower than visible, almost nothing electronic.”

<Vinnie’s always-skeptical voice> “If there’s no connecting with electrons, how does electronic infra-red detection work?”

“Two ways. A few semiconductor configurations are sensitive to near- and mid-infra-red photons. The Spitzer‘s sensors are grids of those configurations. To handle really low-frequency IR you have to sense heat directly with bolometer techniques that track expansion and contraction.”

<another skeptical voice> “OK then, how does infra-red heating work?”

“Looks like a paradox, doesn’t it? Infra-red photons are too low-energy to make a quantum change in a molecule’s electronic arrangement, but we know that the only way photons can have an effect is by making quantum changes. So how come we feel infra-red’s heat? The key is, photons can interact with any kind of charged structure, not just electrons. If a molecule’s charges aren’t perfectly balanced a photon can vibrate or rotate part of a molecule or even the whole thing. That changes its kinetic energy because molecular motion is heat, right? Fortunately for the astronomers, gas vibrations and rotations are quantized, too. An isolated water molecule can only do stepwise changes in vibration and rotation.”

“Why’s that fortunate?”

“Because that’s how I do my research. Every kind of molecule has its own set of steps, its own set of frequencies where it can absorb light. The infra-red range lets us do for molecules what the visual range lets us do for atoms. By charting specific absorption bands we’ve located and identified interstellar clouds of water, formaldehyde and a host of other chemicals. I just recently saw a report of ‘helonium‘, a molecular ion containing helium and hydrogen, left over from when the Universe began. Infra-red is so cool.”

“No, it’s warm.”

Image suggested by Alex

~~ Rich Olcott

Better A Saber Than A Club?

There’s a glass-handled paper-knife on my desk, a reminder of a physics experiment gone very bad back in the day. “Y’know, Vinnie, this knife gives me an idea for another Star Trek weapons technology.”

“What’s that, Sy?”

“Some kinds of wave have another property in addition to frequency, amplitude and phase. What do you know about seismology?”

“Not a whole lot. Uhh … earthquakes … Richter scale … oh, and the Insight lander on Mars has seen a couple dozen marsquakes in the first six months it was looking for them.”

“Cool. Well, where I was going is that earthquakes have three kinds of waves. One’s like a sound wave — it’s called a Pwave or pressure wave and it’s a push-pull motion along the direction the wave is traveling. The second is called an Swave or shear wave. It generates motion in some direction perpendicular to the wave’s path.”

“Not only up-and-down?”

“No, could be any perpendicular direction. Deep in the Earth, rock can slide any which-way. One big difference between the two kinds is that a Pwave travels through both solid and molten rock, but an Swave can’t. Try to apply shearing stress to a fluid and you just stir it around your paddle. The side-to-side shaking isn’t transmitted any further along the wave’s original path. The geophysicists use that difference among other things to map out what’s deep below ground.”

“Parallel and perpendicular should cover all the possibilities. What’s the third kind?”

“It’s about what happens when either kind of deep wave hits the surface. A Pwave will use up most of its energy bouncing things up and down. So will an Swave that’s mostly oriented up-and-down. However, an Swave that’s oriented more-or-less parallel to the surface will shake things side-to-side. That kind’s called a surface wave. It does the most damage and also spreads out more broadly than a P- or Swave that meets the surface with the same energy.”

“This is all very interesting but what does it have to do with Starfleet’s weapons technology? You can’t tell a Romulan captain what direction to come at you from.”

“Of course not, but you can control the polarization angle in your weapon beams.”

“Polarization angle?”

Plane-polarized electromagnetic wave
Electric (E) field is red
Magnetic (B) field is blue
(Image by Loo Kang Wee and
Fu-Kwun Hwang from Wikimedia Commons)

“Yeah. I guess we sort of slid past that point. Any given Swave vibrates in only one direction, but always perpendicular to the wave path. Does that sound familiar?”

“Huh! Yeah, it sounds like polarized light. You still got that light wave movie on Old Reliable?”

“Sure, right here. The red arrow represents the electric part of a light wave. Seismic waves don’t have a magnetic component so the blue arrow’s not a thing for them. The beam is traveling along the y‑axis, and the electric field tries to move electrons up and down in the yz plane. A physicist would say the light beam is planepolarized. Swaves are polarized the same way. See the Enterprise connection?”

“Not yet.”

“Think about the Star Trek force-projection weapons — regular torpedoes, photon torpedoes, ship-mounted phasers, tractor beams, Romulan pulse cannons and the like. They all act like a Pwave, delivering push-pull force along the line of fire. Even if Starfleet’s people develop a shield-shaker that varies a tractor beam’s phase, that’s still just a high-tech version of a club or cannon ball. Beamed Swaves with polarization should be interesting to a Starfleet weapons designer.”

“You may have something. The Bridge crew talks about breaking through someone’s shield. Like you’re using a mace or bludgeon. A polarized wave would be more like an edged knife or saber. Why not rip the shield instead? Those shields are never perfect spheres around a ship. If your beam’s polarization angle happens to match a seam where two shield segments come together — BLOOEY!”

“That’s the idea. And you could jiggle that polarization angle like a jimmy — another way to confuse the opposition’s defense system.”

“I’m picturing a Klingon ship’s butt showing through a rip in its invisibility cloak. Haw!”

~~ Rich Olcott

How To Phase A Foe

“It’s Starfleet’s beams against Klingon shields, Vinnie. I’m saying both are based on wave phenomena.”

“What kind of wave, Sy?”

“Who knows? They’re in the 24th Century, remember. Probably not waves in the weak or strong nuclear force fields — those’d generate nuclear explosions. Could be electromagnetic waves or gravitational waves, could be some fifth or sixth force we haven’t even discovered yet. Whatever, the Enterprise‘s Bridge crew keeps saying ‘frequency’ so it’s got to have some sort of waveishness.”

“OK, you’re sayin’ whatever’s waving, if it’s got frequency, amplitude and phase then we can talk principles for building a weapon system around it. I can see how Geordi’s upping the amplitude of the Enterprise‘s beam weapons would help Worf’s battle job — hit ’em harder, no problem. Jiggling the frequencies … I sort of see that, it’s what they always talk about doing anyway. But you say messing with beam phase can be the kicker. What difference would it make if a peak hits a few milliseconds earlier or later?”

“There’s more than one wave in play. <keys clicking> Here’s a display of the simplest two-beam interaction.”

“I like pictures, but this one’s complicated. Read it out to me.”

“Sure. The bottom line is our base case, a pure sine wave of some sort. We’re looking at how it’s spread out in space. The middle line is the second wave, traveling parallel to the first one. The top line shows the sum of the bottom two at each point in space. That nets out what something at that point would feel from the combined influence of the two waves. See how the bottom two have the same frequency and amplitude?”

“Sure. They’re going in the same direction, right?”

“Either that or exactly the opposite direction, but it doesn’t matter. Time and velocity aren’t in play here, this is just a series of snapshots. When I built this video I said, ‘What will things look like if the second beam is 30° out of phase with the first one? How about 60°?‘ and so on. The wheel shape just labels how out-of-phase they are, OK?”

“Give me a sec. … OK, so when they’re exactly in sync the angle’s zero and … yup, the top line has twice the amplitude of the bottom one. But what happened to the top wave at 180°? Like it’s not there?”

“It’s there, it’s just zero in the region we’re looking at. The two out-of-phase waves cancel each other in that interval. That’s how your noise-cancelling earphones work — an incoming sound wave hits the earphone’s mic and the electronics generate a new sound wave that’s exactly out-of-phase at your ear and all you hear is quiet.”

“I’ve wondered about that. The incoming sound has energy, right, and my phones are using up energy. I know that because my battery runs down. So how come my head doesn’t fry with all that? Where does the energy go?”

“A common question, but it confuses cause and effect. Yes, it looks like the flatline somehow swallows the energy coming from both sides but that’s not what happens. Instead, one side expends energy to counter the other side’s effect. Flatlines signal success, but you generally get it only in a limited region. Suppose these are sound waves, for example, and think about the molecules. When an outside sound source pushes distant molecules toward your ear, that produces a pressure peak coming at you at the speed of sound, right?”

“Yeah, then…”

“Then just as the pressure peak arrives to push local molecules into your ear, your earphone’s speaker acts to pull those same molecules away from it. No net motion at your ear, so no energy expenditure there. The energy’s burned at either end of the transmission path, not at the middle. Don’t worry about your head being fried.”

“Well that’s a relief, but what does this have to do with the Enterprise?”

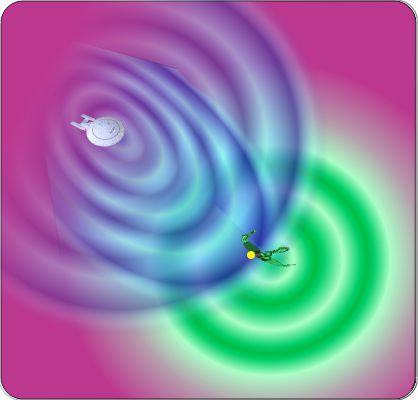

“Here’s a sketch where I imagined an unfriendly encounter between a Klingon cruiser and the Enterprise after Geordi upgraded it with some phase-sensitive stuff. Two perpendicular force disks peaked right where the Klingon shield troughed. The Klingon’s starboard shield generator just overloaded.”

“That’ll teach ’em.”

“Probably not.”

~~ Rich Olcott

Three Ploys to Face A Foe

Run done, Vinnie and I head upstairs to my office to get out of the windchill. My Starship Enterprise poster reminds me. “Geez, it’s annoying.”

“Now what, Sy?”

“I’ve been binge-watching old Star Trek:Next Generation TV programs and the technobabble’s gotten annoying.”

“What’s the problem this time?”

“Well, whenever the Enterprise gets into a fix where it’s their phaser beam or tractor beam or shields against some new Borg technology or something, Geordi or Worf get busy making adjustments and it’s always the frequency. ‘Modulate to a lower frequency!‘ or ‘Raise the frequency!‘ or even ‘Randomize the frequency!‘ At one point Dr Crusher was fiddling with someone’s ‘biophysical frequency.’ They miss two-thirds of the options, and especially they miss the best one when you’re trying to mess up your opponent’s stuff.”

“Wait, I thought we said frequency’s what waves are all about. There’s more?”

“Oh, yeah. The fact that they’re saying ‘frequency’ says their beams and shields and such are probably based on some kind of wave phenomenon. The good guys should be fiddling with amplitude and phase, too. Especially phase.”

“OK, I’ll bite. What’re those about?”

I poke a few keys on my computer and bring this up on the wall screen.

“OK, we’ve talked about frequency, the distance or time between peaks. Frequency’s the difference between a tuba and a piccolo, between infra-red and X-rays. That top trace is an example of modulating the frequency, somehow varying the carrier wave’s peak-to-peak interval. See the difference between the modulated wave and the dotted lines where it would be if the modulation were turned off?”

“Modulation means changing?”

“Mm-hm. The important thing is that only the piece within the box gets altered.”

“Got it. OK, you’ve labelled the middle line ‘Amplitude‘ and that’s gotta be about peak height because they’re taller inside the modulation box than the dotted line. I’m guessing here, but does the bigger peak mean more energy?”

“Good guess, but it depends on the kind of wave. Sound waves, yup, that’s exactly what’s going on. Light waves are different, because a photon’s energy is is determined by its frequency. You can’t pump up a photon’s amplitude, but you can pump up the number of photons in the beam.”

“Hey, Sy, I just realized. Your amplitude modulation and frequency modulation must be the AM and FM on my car radio. So in AM radio they sit on the station’s frequency, right, and make a signal by tweaking the amount of power going to the antenna?”

“That’s the basic idea, though engineers chasing efficiency have improved things a lot in the century since they started experimenting with radio. Implementing FM is more complicated so took a few more decades to make that competitive with AM.”

“So what’s the story with, um, ‘phase modulation‘? My radio’s got no PM dial.”

<poking more keys> “Here’s the way I think of a sine wave — it’s what you’d see looking at a mark on the edge of a rolling wheel. The size of the wheel sets the wave’s amplitude, the wheel’s rotation speed sets the wave’s frequency, and the phase is where it is in the rotation cycle. Modulating the phase would be like jerking the wheel back and forth while it’s rotating.”

“So that’s why there’s hiccups in your bottom red Phase line — things don’t match up across a phase shift.. Hmm… I’m still thinking about my radio. AM sound tends to have more static, especially during thunderstorms. That’d be because my radio amplifies any electromagnetic wave amplitudes at the frequency I’d set it for and that includes waves from the lightning. FM sound’s a lot clearer. Is that because frequency shifts don’t happen much?”

“Exactly.”

“PM broadcasts ought to be even safer against noise. How come I never see them?”

“You do. WiFi uses it, precisely because it works well even at extremely low power levels. OK, challenge question — why do you think I think PM would be better than FM against Borg tech?”

“It’d be like in fencing or martial arts. Frequency’s jab, jab, jab, regular-like. Shifting your wave phase would be mixing it up, they wouldn’t know when the next peak’s coming.”

“Yup. Now tell Geordi.”

~~ Rich Olcott

Trombones And Echoes

Vinnie’s fiddling with his Pizza Eddie’s pizza crumbs. “Hey, Sy, so we got the time standard switched over from that faked 1900 Sun to counting lightwave peaks in a laser beam. I understand why that’s more precise ’cause it’s a counting measure, and it’s repeatable and portable ’cause they can set up a time laser on Mars or wherever that uses the same identical kinds of atoms to do the frequency stuff. All this talk I hear about spacetime, I’m thinkin’ space is linked to time, right? So are they doing smart stuff like that for measuring space?”

“They did in 1960, Vinnie. Before that the meter was defined to be the distance between two carefully positioned scratches on a platinum-iridium bar that was lovingly preserved in a Paris basement vault. In 1960 they went to a new standard. Here, I’ll bring it up on Old Reliable. By the way, it’s spelled m-e-t-e-r stateside, but it’s the same thing.”

“Mmm… Something goofy there. Look at the number. You’ve been going on about how a counted standard is more precise than one that depends on ratios. How can you count 0.73 of a cycle?”

“You can’t, of course, but suppose you look at 100 meters. Then you’d be looking at an even 165,076,373 of them, OK?”

“Sorta, but now you’re counting 165 million peaks. That’s a lot to ask even a grad student to do, if you can trust him.”

“He won’t have to. Twenty-three years later they went to this better definition.”

“Wait, that depends on how accurate we can measure the speed of light. We get more accurate, the number changes. Doesn’t that get us into the ‘different king, different foot-size’ hassle?”

“Quite the contrary. It locks down the size of the unit. Suppose we develop technology that’s good to another half-dozen digits of precision. Then we just tack half-a-dozen zeroes onto that fraction’s denominator after its decimal point. Einstein said that the speed of light is the same everywhere in the Universe. Defining the meter in terms of lightspeed gives us the same kind of good-everywhere metric for space that the atomic clocks give us for time.”

“I suppose, but that doesn’t really get us past that crazy-high count problem.”

“Actually, we’ve got three different strategies for different length scales. For long distances we just use time-of-flight. Pick someplace far away and bounce a laser pulse off of it. Use an atomic clock to measure the round-trip time. Take half that, divide by the defined speed of light and you’ve got the distance in meters. Accuracy is limited only by the clock’s resolution and the pulse’s duration. The Moon’s about a quarter-million miles away which would be about 2½ seconds round-trip. We’ve put reflectors up there that astronomers can track to within a few millimeters.”

“Fine, but when distances get smaller you don’t have as many clock-ticks to work with. Then what do you do?”

“You go to something that doesn’t depend on clock-ticks but is still connected to that constant speed of light. Here, this video on Old Reliable ought to give you a clue.”

“OK, the speed which is a constant is the number of peaks that’s the frequency times the distance between them that’s the wavelength. If I know a wavelength then arithmetic gets me the frequency and vice-versa. Fine, but how do I get either one of them?”

“How do you tune a trombone?”

“Huh? I suppose you just move the slide until you get the note you want.”

“Yup, if a musician has good ear training and good muscle memory they can set the trombone’s resonant tube length to play the right frequency. Table-top laser distance measurements use the same principle. A laser has a resonant cavity between two mirrors. Setting the mirror-to-mirror distance determines the laser’s output. When you match the cavity length to something you want to measure, the laser beam frequency tells you the distance. At smaller scales you use interference techniques to compare wavelengths.”

Vinnie gets a gleam in his eye. “Time-of-flight measurement, eh?” He flicks a pizza crumb across the room.

In a flash Eddie’s standing over our table. “Hey, hotshot, do that again and you’re outta here!”

“Speed of light, Sy?”

“Pretty close, Vinnie.”

~~ Rich Olcott

Gravity’s Real Rainbow

Some people are born to scones, some have scones thrust upon them.  As I stepped into his coffee shop this morning, Al was loading a fresh batch onto the rack.  “Hey, Sy, try one of these.”

“Uhh … not really my taste.  You got any cinnamon ones ready?”

“Not much for cheddar-habañero, huh?  I’m doing them for the hipster trade,” waving towards all the fedoras on the room.  “Here ya go.  Oh, Vinnie’s waiting for you.”

I navigated to the table bearing a pile of crumpled yellow paper, pulled up a chair.  “Morning, Vinnie, how’s the yellow writing tablet working out for you?”

“Better’n the paper napkins, but it’s nearly used up.”

“What problem are you working on now?”

“OK, I’m still on LIGO and still on that energy question I posed way back — how do I figure the energy of a photon when a gravitational wave hits it in a LIGO?  You had me flying that space shuttle to explain frames and such, but kept putting off photons.”

“Can’t argue with that, Vinnie, but there’s a reason.  Photons are different from atoms and such because they’ve got zero mass.  Not just nearly massless like neutrinos, but exactly zero.  So — do you remember Newton’s formula for momentum?”

“Yeah, momentum is mass times the velocity.”

“Right, so what’s the momentum of a photon?”

“Uhh, zero times speed-of-light.  But that’s still zero.”

“Yup.  But there’s lots of experimental data to show that photons do carry non-zero momentum.  Among other things, light shining on an an electrode in a vacuum tube knocks electrons out of it and lets an electric current flow through the tube.  Compton got his Nobel prize for that 1923 demonstration of the photoelectric effect, and Einstein got his for explaining it.”

“So then where’s the momentum come from and how do you figure it?”

“Where it comes from is a long heavy-math story, but calculating it is simple.  Remember those Greek letters for calculating waves?”

(starts a fresh sheet of note paper) “Uhh… this (writes λ) is lambda is wavelength and this (writes ν) is nu is cycles per second.”

“Vinnie, you never cease to impress.  OK, a photon’s momentum is proportional to its frequency.  Here’s the formula: p=h·ν/c.  If we plug in the E=h·ν equation we played with last week we get another equation for momentum, this one with no Greek in it:  p=E/c.  Would you suppose that E represents total energy, kinetic energy or potential energy?”

“Momentum’s all about movement, right, so I vote for kinetic energy.”

“Bingo.  How about gravity?”

“That’s potential energy ’cause it depends on where you’re comparing it to.”

light-in-a-gravity-well“OK, back when we started this whole conversation you began by telling me how you trade off gravitational potential energy for increased kinetic energy when you dive your airplane.  Walk us through how that’d work for a photon, OK?  Start with the photon’s inertial frame.”

“That’s easy.  The photon’s feeling no forces, not even gravitational, ’cause it’s just following the curves in space, right, so there’s no change in momentum so its kinetic energy is constant.  Your equation there says that it won’t see a change in frequency.  Wavelength, either, from the λ=c/ν equation ’cause in its frame there’s no space compression so the speed of light’s always the same.”

“Bravo!  Now, for our Earth-bound inertial frame…?”

“Lessee… OK, we see the photon dropping into a gravity well so it’s got to be losing gravitational potential energy.  That means its kinetic energy has to increase ’cause it’s not giving up energy to anything else.  Only way it can do that is to increase its momentum.  Your equation there says that means its frequency will increase.  Umm, or the local speed of light gets squinched which means the wavelength gets shorter.  Or both.  Anyway, that means we see the light get bluer?”

“Vinnie, we’ll make a physicist of you yet.  You’re absolutely right — looking from the outside at that beam of photons encountering a more intense gravity field we’d see a gravitational blue-shift.  When they leave the field, it’s a red-shift.”

“Keeping track of frames does make a difference.”

Al yelled over, “Like using tablet paper instead of paper napkins.”

~~ Rich Olcott
